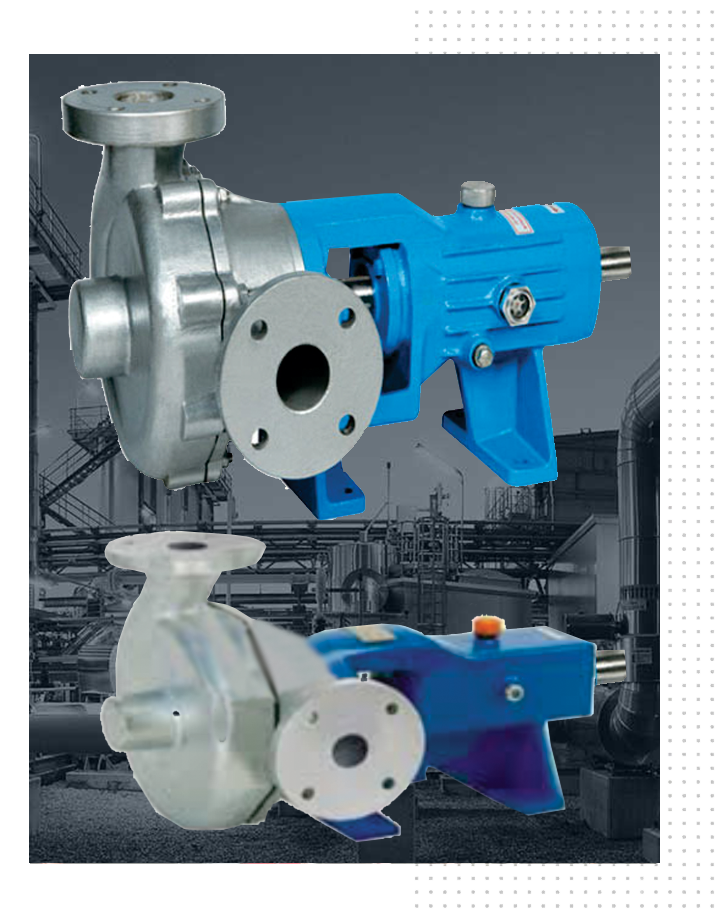

Our Side Suction Pumps (SSP Series Pumps) are used to filtrate suspensions under high pressurized conditions in order to separate the liquids and solids. They are heart of entire filter press systems. Side Suction Pumps (SSP Series Pumps) are centrifugal type with semi-open, non-clogging impeller pump with single row deep grooved heavy duty ball bearing with oil lubrication. It is the most suitable filter press pump for working under very high back pressure.

MOC:

(Volute Casing, Stuffing Box and Impeller) in materials SS316/ CI/ CAST STEEL/CD4MU.

Design Features:

• Single stage semi open impeller Specially design for positive suction head Mechanical seal type & gland type (ARMIED PTFE)

Application:

• Filter Press Feeding, Slurry Transfer, Paper and Pulp, Sugar & food industries. Steel Rolling Mills, Dyes & Intermediates.

Max Head:

• Up to 90 MWC

Max Capacity:

• Up to 200 M³ / h, Up to 90° C temperature.
