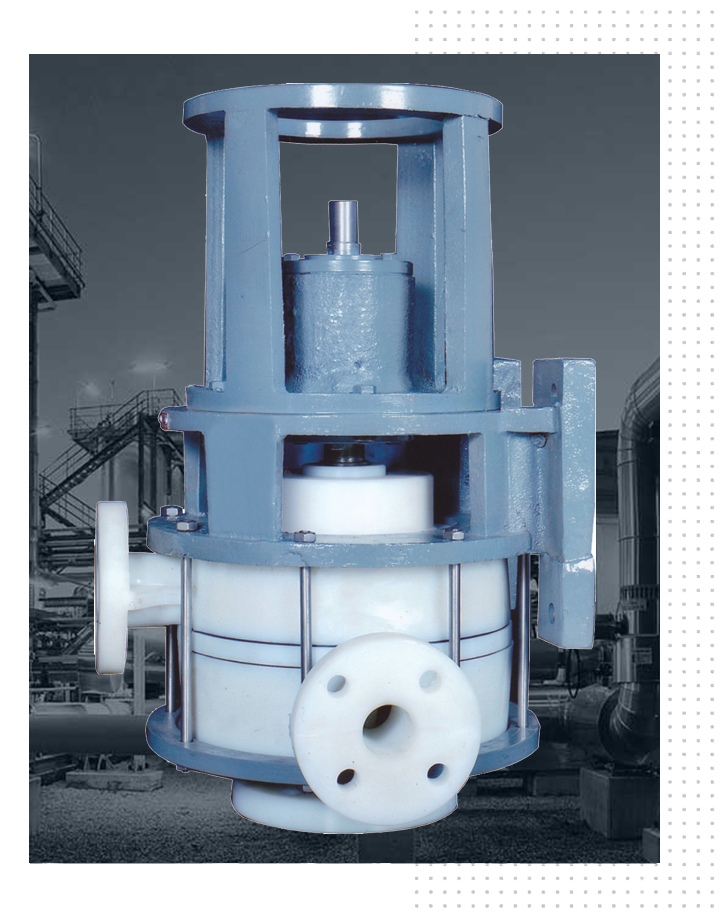

Vertical Pumps are designed in such a way that the liquid which would normally try to pass through the point, where the impeller drive shaft enters the back plate (stuffing box) are diverted and returned.

As a controlled flow to the suction tank. The need for any seal is eliminated by allowing the leakage liquid to escape through the overflow connection of the overflow chamber.

The liquid entering suction flow around the impeller casing and leaves through the delivery under pressure. Between the annular gap of casing and impeller some leakage liquid escapes to the over flow chamber.

The auxiliary impeller (expeller) prevents the leakage liquid going further up and convert it throughout the overflow chamber.

Moc:

• PPCP3530/UHMWPE/PVDF

Max Head:

• 40 mtr capacity- 60 m3/hr , up to 70° c temperature

Applications:

• Acidic ETP, Acidic Scrubber, Ejector Dyes & Pigments Filter, Fertilizer & Chemical Industries.
